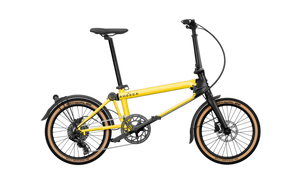

A-MAX Derailleur 8
Available Colors
Cosmic black
Bumblebee
Specifications
Weight: 13kg
Power: Analog
Frame: Alu 6061 Patented double triangle frame
Transmission: Microshift Acolyte 8 Speed Derailleur
Wheel size: 20"
Brakes: Shimano Hydraulic MT200, 160mm rotors
Light type: Battery lights
Gearing: Microshift Acolyte 8 Speed Derailleur
Folding dimensions: 72x69x37cm
Dimensions
Seat height: A570-750mm
Reach: B420-440mm
Stack: C700-820mm
Bottom bracket height: D270mm
Wheelbase: E1088mm
Trail: G54mm
Available Accessories
Max Rear Rack
AHOOGAxVINCITA Nash Rack Bag with Klickfix Uniklip
Max Battery Extender
MAX Carrying Handle
MAX Kickstand
Ahooga x Vincita Denim Backpack
Klickfix Extender for Seatpost
Klickfix Caddy for Stem
Tex-Lock eyelet M black + U-lock + X-lock
The best ride in the city.
Most folding bikes have a single tube cut through the middle, which makes for a wobbly ride.
Max breaks free from the norm with its patented design: the double triangle offers superior agility and rivals any full-size bike.
Max breaks free from the norm with its patented design: the double triangle offers superior agility and rivals any full-size bike.
The smallest fold on the market.
The smallest fold on 20-inch wheels - and it's only 13kg!
Compact, agile, comfortable, Max stays convenient in all situations.
Compact, agile, comfortable, Max stays convenient in all situations.
Features to love
Adapts to all lifestyles.
Accessorize Max for everyday life or for weekend adventures. Your bike adapts to your use with easy to integrate accessories.
Accessories
You asked? We answered.
Compare all Max models
Weight
13kg
14kg
17kg
18kg
Power
Analog
Analog
Electric
Electric
Wheel size
20"
20"
20"
20"
Light type
Battery lights
Battery lights
Integrated
Integrated
Lights
Spanninga Arco - front and rear, For DE only: Contec StVZO light
Spanninga Arco - front and rear, For DE only: Contec StVZO light
Spanninga integrated front & rear + Busch & Müller Myc E 50 lux projector
Spanninga integrated front & rear + Busch & Müller Myc E 50 lux projector
Gearing
Microshift Acolyte 8 Speed Derailleur
Shimano Alfine 8 gear hub
Microshift Acolyte 8 Speed Derailleur
Shimano Alfine 8 gear hub
Brakes
Shimano Hydraulic MT200, 160mm rotors
Shimano Hydraulic MT200, 160mm rotors
Shimano Hydraulic MT200, 160mm rotors
Shimano Hydraulic MT200, 160mm rotors
Folding dimensions
72x69x37cm
72x69x37cm
72x69x37cm
72x69x37cm
Maximum Payload
120kg (rider + bike)
120kg (rider + bike)
120kg (rider + bike)
120kg (rider + bike)
Frame
Alu 6061 Patented double triangle frame
Alu 6061 Patented double triangle frame
Alu 6061 Patented double triangle frame
Alu 6061 Patented double triangle frame
Fork
Alu 6061 Fork
Alu 6061 Fork
Alu 6061 Fork
Alu 6061 Fork
Chainring
50 teeth – 170mm cranks
50 teeth – 170mm cranks
52 teeth – 170mm cranks
52 teeth – 170mm cranks
Chain
Shimano 107 links + QL
Shimano 109 links + QL
Shimano 107 links + QL
Shimano 109 links + QL
Pedals
MKS – UXD Ezy removable pedals
MKS – UXD Ezy removable pedals
MKS – UXD Ezy removable pedals
MKS – UXD Ezy removable pedals
Handlebars
600mm wide
600mm wide
600mm wide
600mm wide
Grips
Lockable Grip Nucore Town wave – Ø22mm
Lockable Grip Nucore Town wave – Ø22mm
Lockable Grip Nucore Town wave – Ø22mm
Lockable Grip Nucore Town wave – Ø22mm
Stem
Foldable stem, height adjustable
Foldable stem, height adjustable
Foldable stem, height adjustable
Foldable stem, height adjustable
Seatpost
Alu seatpost, height adjustable
Alu seatpost, height adjustable
Alu seatpost, height adjustable
Alu seatpost, height adjustable
Saddle
Selle royal Ariel
Selle royal Ariel
Selle royal Ariel
Selle royal Ariel
Fenders
Hard mudguards – Polycarbonate with mudflaps (front and rear)
Hard mudguards – Polycarbonate with mudflaps (front and rear)
Hard mudguards – Polycarbonate with mudflaps (front and rear)
Hard mudguards – Polycarbonate with mudflaps (front and rear)
Engine
-
-
250W / 36V – max torque 35 Nm, 5 assist levels
250W / 36V – max torque 35 Nm, 5 assist levels
Display
-
-
High-resolution color display
High-resolution color display
Sensor
-
-
Torque sensor
Torque sensor
Max speed
-
-
E-support up to 25km/h
E-support up to 25km/h
Battery
-
-
248Wh - Samsung cells, extendable to 428Wh
248Wh - Samsung cells, extendable to 428Wh
Price
€1.799,00
€1.999,00
€2.999,00
€3.499,00
